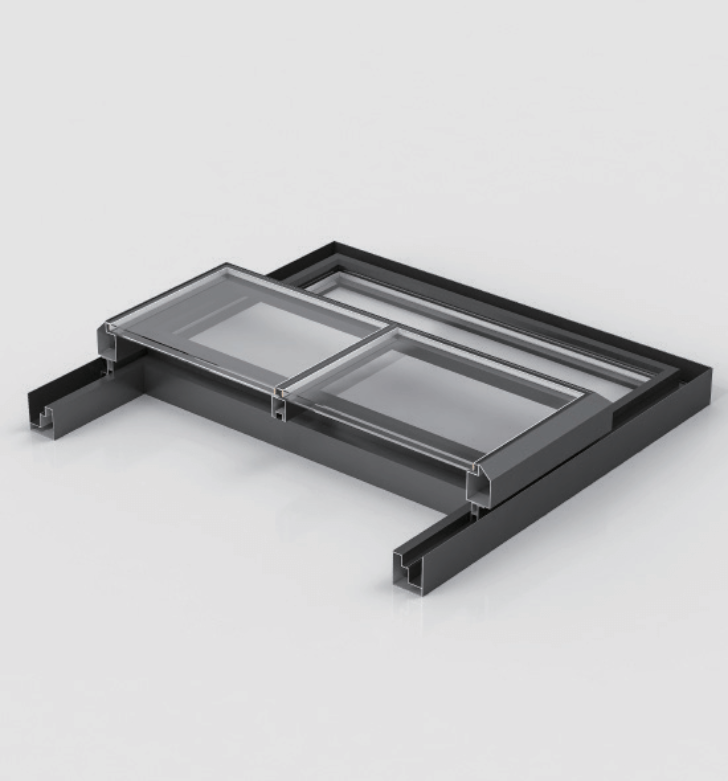

Translation Skylight
| Partial parameters and configurations | Details |
|---|---|
| Material | main structure TS 6063 high-strength aluminium alloy |
| Profile specification | 120 x 145 / 94 x 146 |
| Processing technology | Glue injection corner code splicing |
| Control method | electric remote control |
| Installation angle | 0-5 degrees daylighting root or concrete roof |
| Surface treatment | whole window electrostatic powder treatment (color optional) |
| Functional configuration | electric, remote control, rain sensing, with added lighting |
| Specification and size | maximum span of 4.8m in areas without snow load (snow pressure) , no live load 5kg/m, snow load (snow pressure), with a maximum span of 3.8m in the area |
| Glass configuration | 5+1.14+5+20A+5 laminated with hollow tempered glass and standard 5+1.14PVB+5 |
| Standard sunroof configuration | built-in motor, manual opening and closing device, touch screen controller, and linkage controller |
| Intelligent options | voice control, mobile remote control, electric shade, rain sensor equipped with opening and closing device, manual window opening and closing can be achieved after power outage |
*Use automotive grade adhesive strips (15 years non aging)
*Equipped with a rain sensor to automatically close windows during rain
*Adopting ultra quiet large torque short motor to solve motor vibration and noise problems
Solve thermal protection problem of the motor runnung for 4 minutes, and the motor can operate continuously for an extended period of time

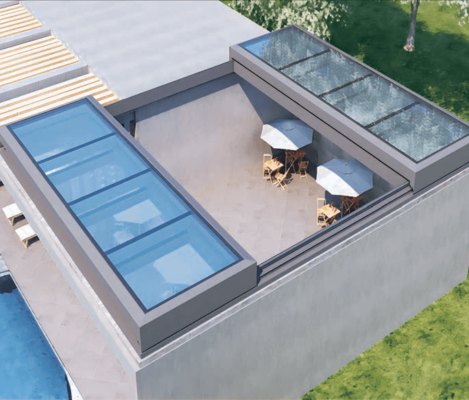

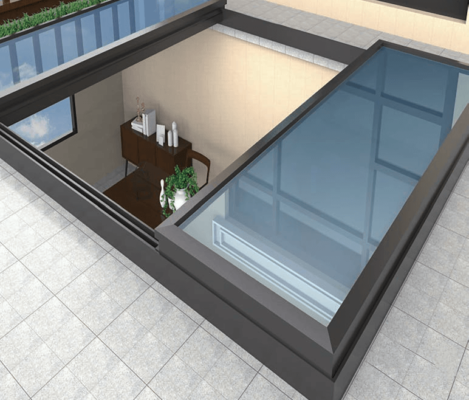

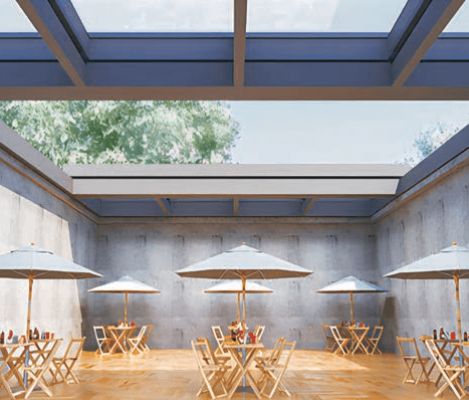

Ventilation and breathability guarding family members
A sliding sunroof that understands your needs
Epdm composite rubber strips are used to ensure zero leakage of the skylight
Realistic case for reference
Sunken Courtyard Project
Cruise Project
SPA Swimming Pool Project
Project in Beijing
Terrace project
Project in Jiangsu
Project in Shenzhen
Yacht project
For large commercial plazas, the outdoor extension of the second space not onlyhas sufficient lighting and can provide shade and waterproofing, but also brings more flexibility and practicality to the use of outdoor space.
